Product Designation Code

XTH JY 27472 T 14 F   35 P N
    ① ②     ③   ④ ⑤ ⑥ ⑦ ⑧ ⑨

1—Enterprise Designation of Shenzhen Xuntonghang Electronic Technology Co., Ltd.
2—Main Designation of Circular Crimp Connector
3—Type:

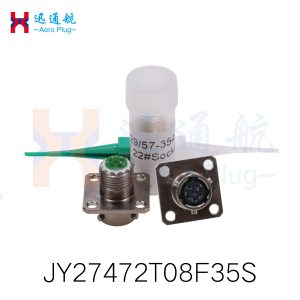

27473-Plug (Only Type T); 27484-Shielded Plug (Only Type T); 27472-Wall-Mounted Square Flange Front-Mounted Receptacle (Only Type T);

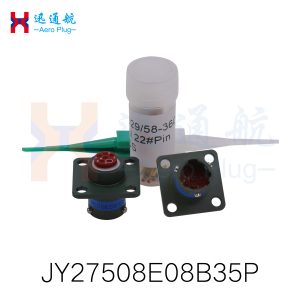

27513-Box-Mounted Square Flange Front-Mounted Receptacle (Only Type E); 27497-Wall-Mounted Square Flange Rear-Mounted Receptacle (Only Type T); . 27508-Box-Mounted Square Flange Rear-Mounted Receptacle (Only Type E);
27474-Nut-Mounted Receptacle (Available in Type T; Type E is Threadless, Customized per Customer Request)

4—Category:
T-Rear with Threads and Rear Accessory Detent Teeth, Rear Accessories Mountable;
E-Rear without Threads and Rear Accessory Detent Teeth, Rear Accessories Non-Mountable
5— Shell Size: 08, 10, 12, 14, 16, 18, 20, 22, 24
6— B-Aluminum Alloy Shell (Cadmium Plated, Military Green); F₁-Sandblasted Nickel Plated (Subscript 1);
C-Aluminum Alloy Shell (Anodized); C₃-Zinc-Nickel Alloy Plated (Black Chromium, Subscript 3);
F-Aluminum Alloy Shell (Electroless Nickel Plated); C₁-Oxidized (Military Green, Subscript 1);
E-Stainless Steel Shell (Passivated); C₂-Oxidized (Black, Subscript 2)

7— P-Crimp Pin (500 Mating Cycles); PH-Soldered Pin; PC-Short PCB Pin; PL-Long PCB Pin;
H-Crimp Pin (1500 Mating Cycles); HH-Soldered Pin; HC-Short PCB Pin; HL-Long PCB Pin;
S-Crimp Socket (500 Mating Cycles); SH-Soldered Socket; SC-Short PCB Socket; SL-Long PCB Socket;
J-Crimp Socket (1500 Mating Cycles); JH-Soldered Socket; JC-Short PCB Socket; L-Long PCB Socket;
CD-External Pin/Internal Socket, Flange Outside Cabin (Feedthrough Receptacle);
DC-External Socket/Internal Pin, Flange Outside Cabin (Feedthrough Receptacle)
9—Keying: N-Standard Keyway (A, B, C, D); E-Alternate Keyway
Note: Except for the different main designations, the model naming of GJB599A (National Military Standard) and MIL-DTL-38999K (U.S. Military Standard) is identical. The main designation of GJB599A is "JY", and that of MIL-DTL-38999K is "MS"; the two are interchangeable and compatible.
