Product Designation Code
XTH JY 3110 E 18 - 32 P N L 59
① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩
1—Enterprise Designation of Shenzhen Xuntonghang Electronic Technology Co., Ltd.
2—Main Designation of Circular Electrical Connector
3—Component Number:

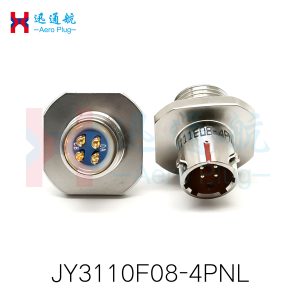

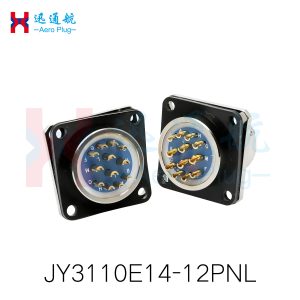

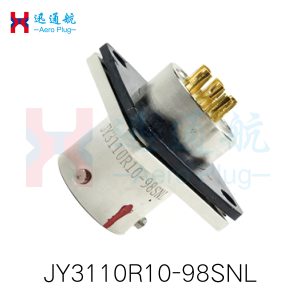

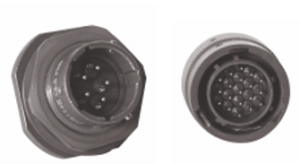

3110-Wall-Mounted Square Flange Mounting Receptacle (Available in Types R, E, F, P, J);
3111-Cable-Mounted Receptacle (Available in Types R, E, F, P, J);

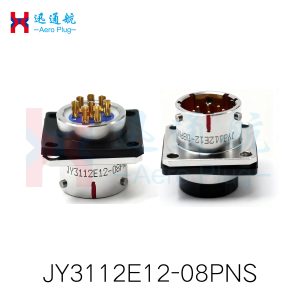

3112-Box-Mounted Square Flange Receptacle (Available in Types E, B);

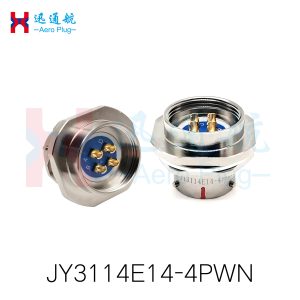

3114-Nut-Secured Mounting Receptacle (Available in Types R, E, F, P, B, G);

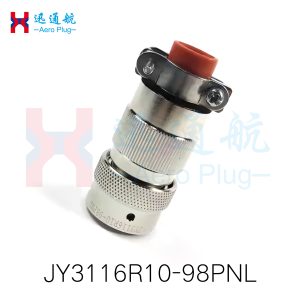

3116-Straight Plug (Available in Types E, F, P, J, M);
3117-Wall-Mounted Square Flange Through-Wall Receptacle (Available in Type P)
4—Type:
R-No Rear Accessory; E-Cable Grommet Sealing, Conductive Shell; F-Cable Grommet Sealing with Cable Clamp, Conductive Shell; . P-Potting Sealing, Conductive Shell; J-Sealing for Armored Cable, Conductive Shell;
B-PCB Type; M-Waterproof Sealing Accessory
5—Shell Size: 08, 10, 12, 14, 16, 18, 20, 22, 24
6—Contact Arrangement
7—Contact Type: S-Socket Contact; P-Pin Contact; C-Through-Wall Contact
8—Keying Position Code: N, W, ×, Y, Z
9—Shell Plating: Unmarked-Cadmium Plating with Olive Drab Finish (Conductive Shell); L-Electroless Nickel Plating (Conductive Shell); . L1-Sandblasted Nickel Plating; A-Black Anodization (Non-Conductive Shell); S-Stainless Steel Passivation (Stainless Steel);
A1-Military Green Oxidation; B-Cadmium Plating with Military Green Finish (Conductive Shell); C-Electroless Nickel Plating (Naval Brass); . A3-Zinc-Nickel Alloy with Black Finish [Black Chromium]
10—Abbreviation of Rear Accessory: 59-Angled Shielded Tensile Rain-Proof Rear Accessory; 43-Straight Shielded Tensile Rain-Proof Rear Accessory; 21-Straight Shielded Cable Sealed Rear Accessory
Note: Except for the different main designations, the model naming of national military standard GJB598, U.S. military standard MIL-C-26482, and domestic "YB" series products is identical. The main designation of GJB598 is "JY", that of MIL-C-26482 is "MS", and that of domestic "YB" series is "YB". The three are interchangeable and compatible.
