In the realm of electronic devices, various components operate synergistically like gears in a precision machine, ensuring the seamless transmission of information and stable delivery of power. Among these components, electrical connectors play a pivotal role. Though seemingly unremarkable, they serve as indispensable bridges linking disparate circuit modules. This article focuses on a specific model—the J63A-212-009-161-JC electrical connector—to elaborate on its fundamental characteristics and application scenarios.
To understand the J63A-212-009-161-JC, we first need to define what an electrical connector is. In simple terms, an electrical connector is a component that achieves separable circuit connections via mechanical structures. It obviates the need for specialized wire soldering, thereby streamlining equipment assembly, maintenance, upgrading, and component replacement processes. Electrical connectors of diverse types are essential to household appliances, industrial equipment, and sophisticated communication systems alike.

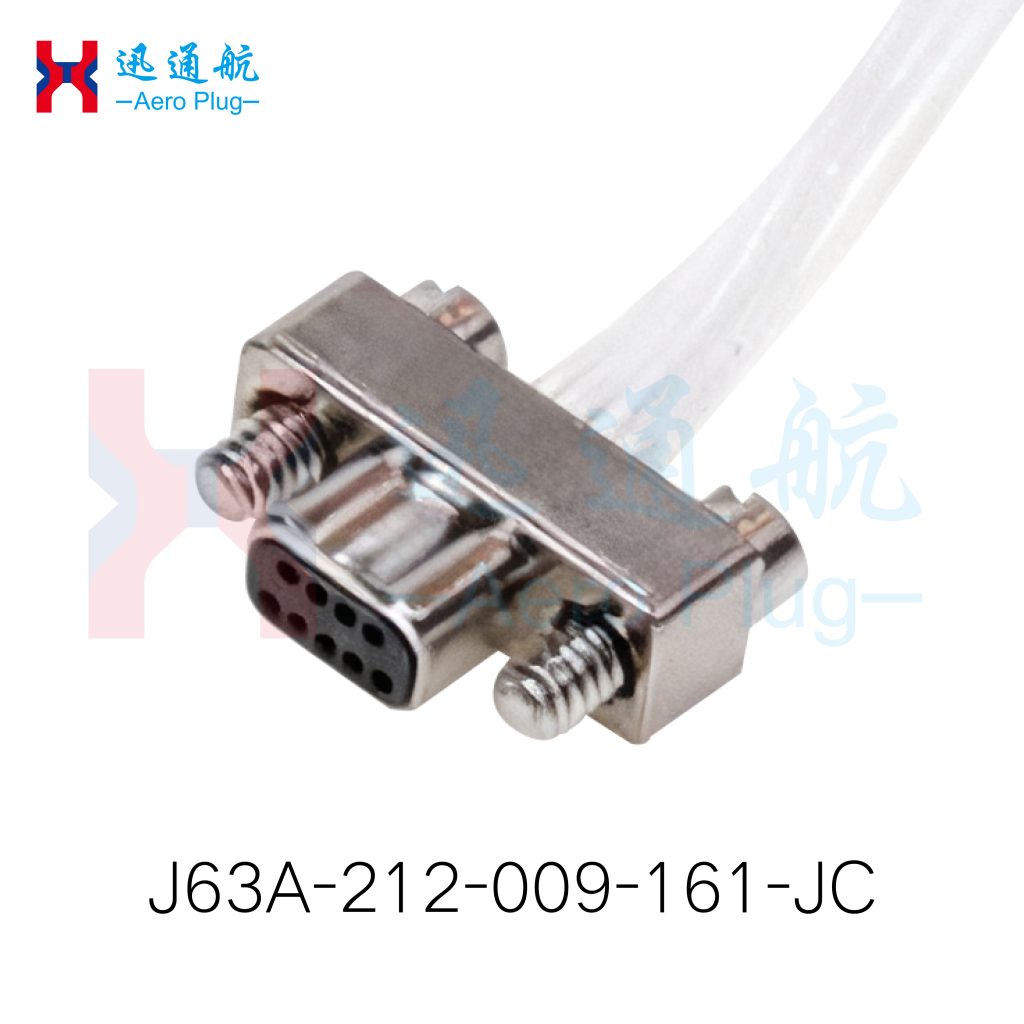

-2-1024x1024.jpg)
1. Model Interpretation: Decoding J63A-212-009-161-JC
The model designation of an electrical connector is never randomly assigned; it encapsulates critical information including the connector’s series, structure, contact count, and contact pitch. Below is a general interpretation of the J63A-212-009-161-JC model:
- Series Code (J63A): “J63A” denotes the product series to which the connector belongs. Different series are differentiated by overall design, material selection, and performance parameters (e.g., current and voltage rating, operating temperature range). This series code enables manufacturers and engineers to achieve rapid product classification.
- Structure Identifier (212): This numerical segment specifies the connector’s key structural attributes, such as straight or angled plug configuration, plug or receptacle type, housing material, and contact arrangement.
- Contact Specification (009): This number indicates the quantity of contacts (i.e., pins) integrated into the connector. The value “009” signifies 9 independent conductive contacts, capable of transmitting 9 channels of signals or power simultaneously. This feature is critical for complex devices requiring high-density interconnections.
- 161JC (Contact Termination & Plating; Locking Mechanism): “16” represents crimp-type pins; “1” indicates gold plating on the contact surface. JC designates the locking component type, referring to a straight-slot locking screw.
In summary, the J63A-212-009-161-JC model refers to a J63A-series electrical connector featuring a dual-row plug, nickel-plated housing, 9 contacts, crimp-type gold-plated pins, and a straight-slot locking screw.
It should be noted that naming conventions for connector models may vary across manufacturers. For the most accurate interpretation, consulting the official product datasheet corresponding to this model is the most reliable approach.
2. Key Characteristics of the J63A-212-009-161-JC Electrical Connector
Based on the preliminary model analysis, we can infer the following typical characteristics of the J63A-212-009-161-JC electrical connector:
- High-Density Interconnection: Equipped with 9 contacts, it is ideally suited for applications requiring parallel transmission of multiple signals between circuit boards or equipment modules.
- Reliable Contact Performance: Contacts are typically fabricated from copper alloy and subjected to plating treatments (e.g., gold or tin plating). This ensures excellent electrical conductivity, low contact resistance, and superior resistance to corrosion and oxidation.
- Robust Mechanical Structure: The connector housing is predominantly made of aluminum alloy with electroless nickel plating, providing robust mechanical protection. It is furnished with a secure straight-slot locking screw to prevent accidental disconnection under harsh operating conditions such as vibration and impact.
- Environmental Adaptability: Such connectors are engineered with inherent environmental resilience, often incorporating dustproof and moistureproof capabilities to accommodate diverse operating environments.
3. Analysis of Common Application Fields
Multi-core micro-rectangular connectors such as the J63A-212-009-161-JC boast a broad range of applications. Below are their primary application sectors:
- Industrial Automation & Control Equipment: In automated production lines, CNC machine tools, and robotic systems, numerous components including controllers, sensors, and actuators require interconnection. High-density, high-reliability connectors are crucial to ensuring stable system operation.
- Communication Equipment: The interconnection between various circuit boards and modules within communication infrastructure—such as base station equipment, network switches, and servers—often relies on such connectors.
- Test & Measurement Instruments: Complex test systems require the integration of multiple instrument modules. Pluggable connectors facilitate flexible system configuration and reconfiguration.
- Specialized Electronic Equipment: They are also widely used in professional equipment across the transportation, energy, and scientific research sectors.
4. Guidelines for Ensuring Reliable Connector Operation
Selecting a suitable connector is merely the first step toward achieving optimal performance; proper usage and maintenance are equally critical. Below are fundamental guidelines to follow:
- Compatibility Verification: Ensure full compatibility between plugs and receptacles, including matching contact count, contact arrangement, and keying features (anti-misinsertion design). Forcing the mating of incompatible connectors may result in irreversible damage.
- Termination Craftsmanship: The termination (soldering or crimping) between wires and connector contacts must be secure, reliable, and compliant with process specifications. Poor termination is a prevalent cause of connector failures.
- Mating & Unmating Operations: Align connectors accurately during mating and apply axial force to avoid skewing. For connectors equipped with locking mechanisms, ensure full engagement before operation and disengage the lock prior to separation.
- Environmental Protection: When not in use, particularly in the separated state, protect connector interfaces from dust, moisture, and foreign debris. Matching protective caps are recommended for this purpose.
- Regular Inspection: Conduct periodic visual inspections when conditions permit to check for housing damage, contact bending, or corrosion, ensuring the integrity of the connection.
5. Frequently Asked Questions About Electrical Connectors
To deepen understanding, we address several common questions in a Q&A format:
- Q: Is gold plating on connector contacts purely for aesthetic purposes?
- A: No, gold plating serves functional rather than decorative purposes. Its primary objective is to leverage gold’s exceptional chemical stability (oxidation resistance) and superior electrical conductivity. Even when exposed to air, the gold plating maintains a clean contact surface, ensuring long-term stability of contact resistance at low levels. This is particularly critical for applications involving weak signal transmission or demanding high reliability. Of course, for cost efficiency, thin gold plating is typically applied only to critical contact areas.
- Q: Is a higher number of mating cycles indicative of a better connector?
- A: Not necessarily. Every connector has a defined mechanical lifespan (commonly referred to as mating durability), which denotes the number of times it can complete mating and unmating cycles reliably under specified conditions. Exceeding this limit may compromise contact elasticity, wear the plating, and degrade connection reliability. When selecting a connector, estimate the actual mating frequency based on the application scenario and choose a product with a suitable mechanical lifespan. Avoid unnecessary frequent mating and unmating.
- Q: Why is there a significant price disparity between different connectors?
- A: Price variations stem from several key factors: material costs (e.g., housing materials, contact base materials, plating materials and thickness), manufacturing process complexity and precision requirements, performance parameters (e.g., operating voltage and current, temperature range, ingress protection rating), brand reputation, and compliance with specific industry standards (e.g., military standards, aerospace-grade standards). Naturally, the cost and price of a connector designed for ordinary commercial environments differ substantially from those of an aerospace-grade connector engineered to withstand extreme temperatures and high-impact conditions. Users should make trade-offs based on actual application requirements when making purchasing decisions.
Through the above discussion, we have established a basic understanding of the J63A-212-009-161-JC electrical connector. As a representative model, it embodies the evolving trends of modern electrical connectors toward high density, high reliability, and robust environmental adaptability. In an era where electronic technology permeates every aspect of daily life, understanding the working principles and selection criteria of these fundamental components is instrumental to comprehending and supporting the stable operation of various electronic devices.
